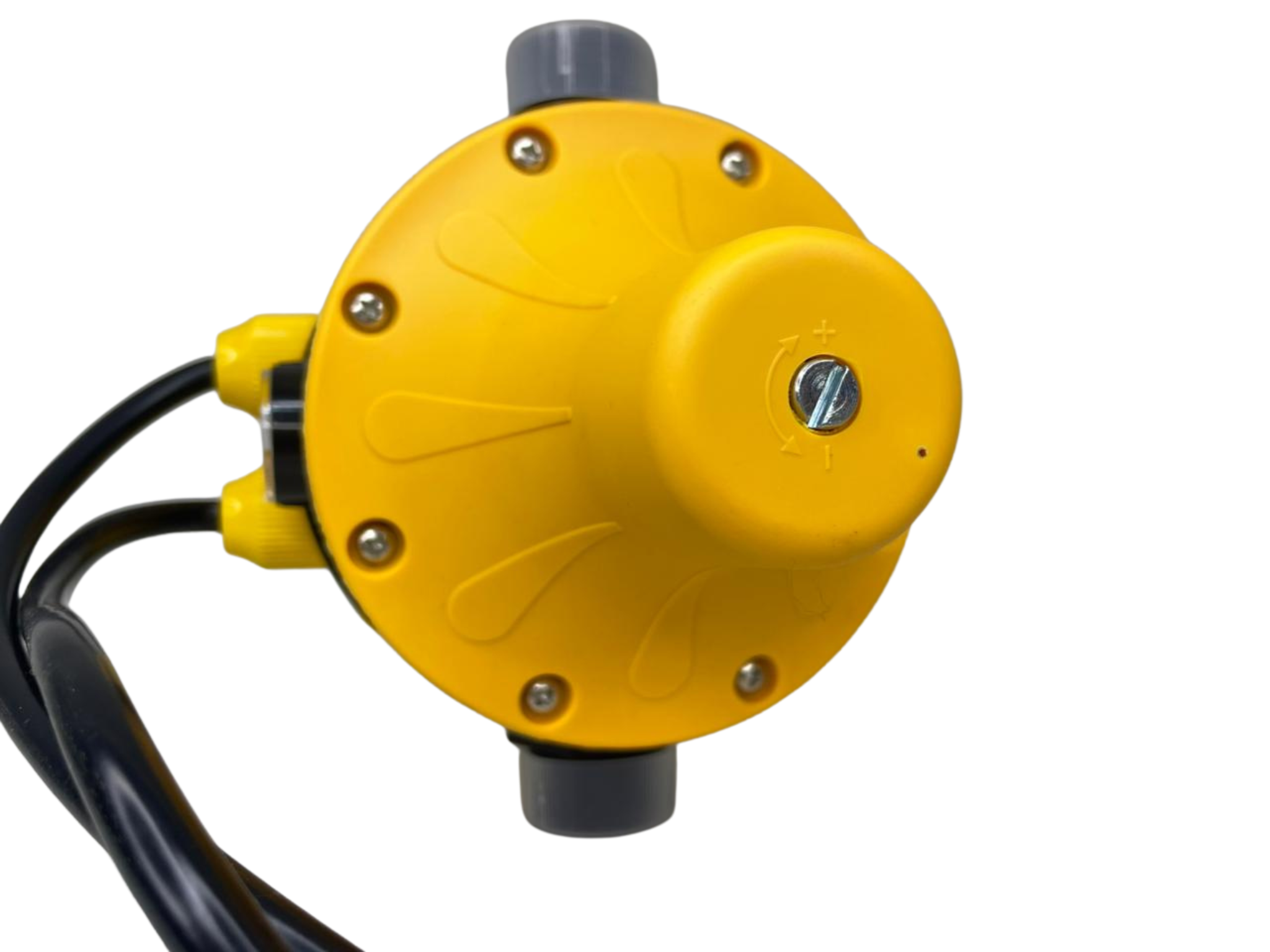

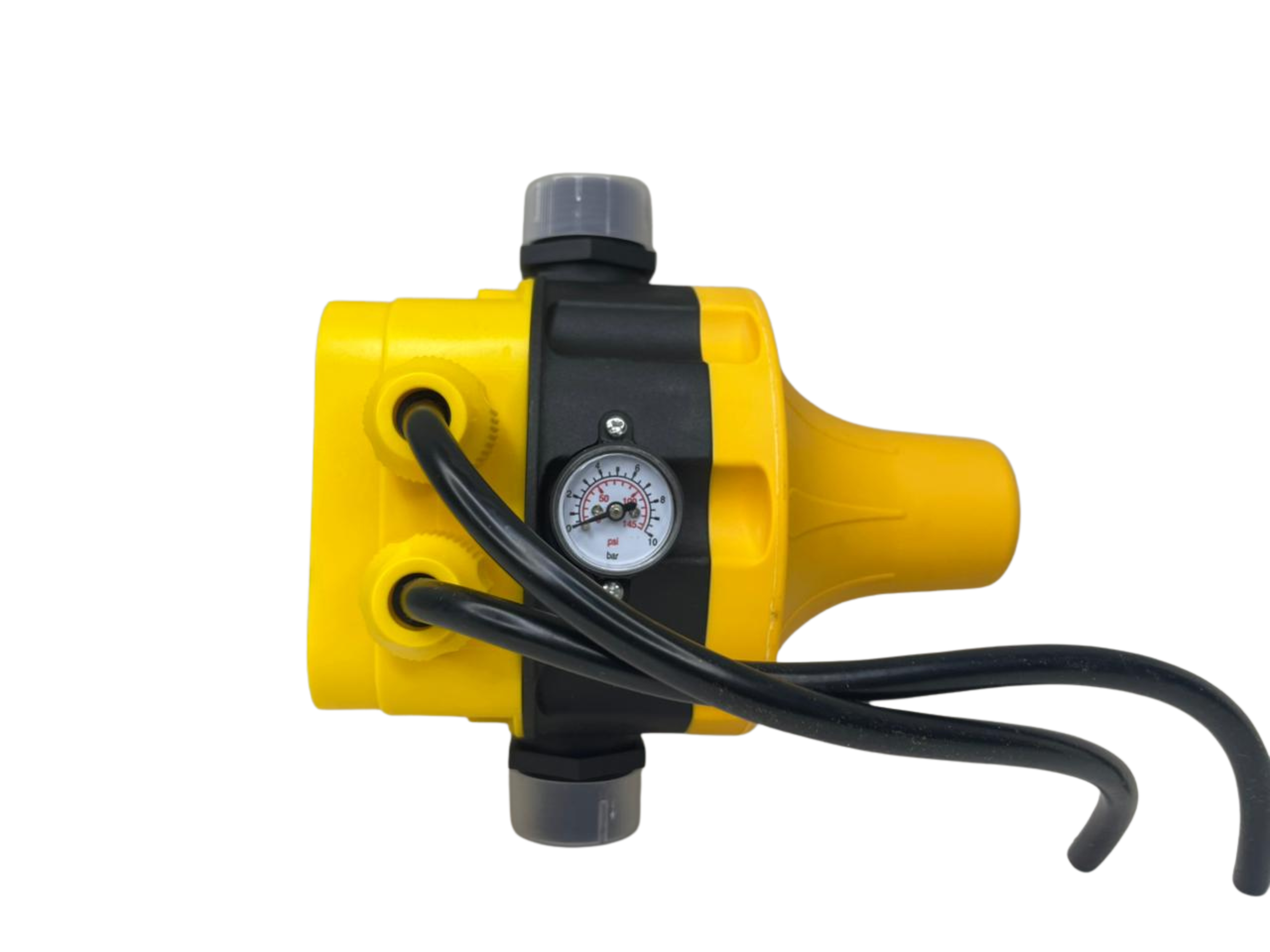

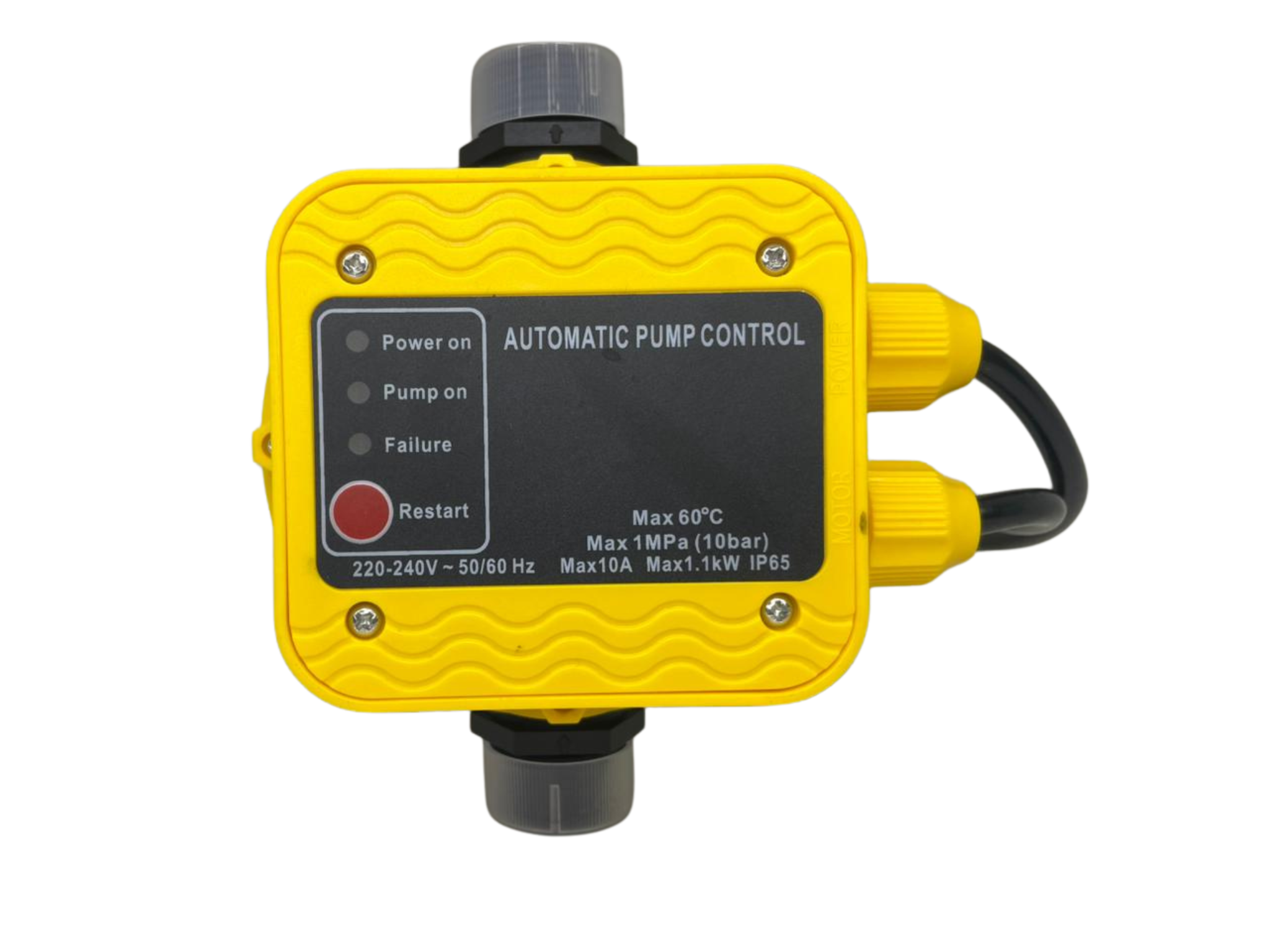

Automatic Water Pump Controller

Automatic Water Pump Controller – Intelligent Pump Protection & Control

Ensure seamless operation and extended life of your water pump with our Automatic Water Pump Controller, designed to start and stop the pump automatically based on water flow. Ideal for residential, agricultural, and commercial water supply systems, this compact unit offers complete pump automation and protection with minimal setup.

✅ Key Features:

• Fully Automatic Operation: Automatically starts the pump when water is required and stops it when the flow ends.

• Dry Run Protection: Prevents pump damage by detecting the absence of water and shutting off the system.

• Built-In Check Valve: Avoids backflow and ensures proper directional flow.

• Manual Restart Button: Allows manual reset in case of system errors or after dry-run conditions.

• LED Indicators: Easy-to-read panel for system status and fault alerts.

• IP65 Rated Housing: Durable and weather-resistant enclosure for long-lasting performance.

🛠 Specifications:

• Input Voltage: 220V–240V

• Frequency: 50/60 Hz

• Max Current: 10A

• Max Working Pressure: 10 bar

• Max Working Temperature: 60°C

• Protection Rating: IP65

• Connection: 1″ Male

⚙️ Applications:

• Domestic water supply systems

• Garden and irrigation systems

• Booster pump setups

• Fire pump and pressure tank applications

📦 Installation Guidelines:

• Install vertically for optimal sensor accuracy.

• Ensure no tap is placed between the pump and the controller.

• Suitable for pumps with a power rating of up to 1.1 kW.

• Can be connected directly to the pump or via flexible hose.

🧰 Safety and Maintenance:

• Always install the unit in a dry area to avoid damage to internal electronics.

• Ensure the pressure and flow conditions meet the minimum required values to avoid malfunction.

• Unit includes protective features against water hammer and electrical overload.
